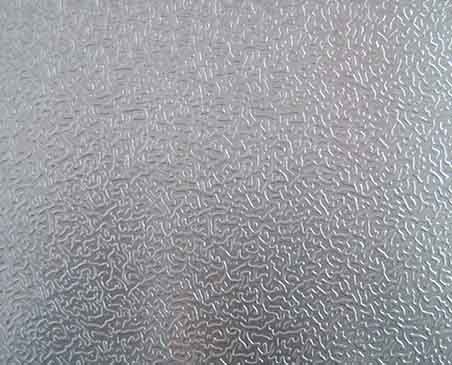

Patterned aluminium sheet

The Anti slip aluminium plate produced by haomei Aluminum has novel structure and good anti-skid effect. Light weight, excellent durability. The quality of each square metre is about 7 kg. Its tensile strength reaches 200 N per square millimeter. The elongation of aluminium sheet is high and its relative elongation is higher than 10%. It can withstand high bending without breaking and has good toughne

Anti slip aluminium plate



Anti slip aluminium plate


1050  1060  1100  3003  3004  3105  5052 5754 6061 6062 7072


O,H14,H24,H32,H112 Etc;T4,T651 Etc






As your requst


Can be blue film coated or not


3MT depend on the SPECIFICATION .

Production Process

Cold Rolled,Hot Rolled


Industrial Construction,Warehouse, Roof of Large-span Steel Structure Housing ,Wall Decoration

Kind attn

Specification can be custommized as the customer's requirements.

Anti slip aluminium plate weight table (kg/m2)

diamond plate 1 2 3 4 5 6 7


LY12 LY11 L1-L6 LY11 LF6 KF43 LY11 LD30

specific weight

2.78 2.8 2.71 2.8 2.68 2.80 2.70

Thickness mm

1.0 3.45 - - - - - -
1.2 4.01 - - - - - -
1.5 4.84 - 4.67 - 4.62 - -
1.8 5.68 - - - - - -
2.0 6.23 6.90 6.02 5.06 5.96 - 6.00
2.5 7.62 8.30  7.38 7.46 7.3 - 7.35
3.0 9.01 9.70  8.73 8.86 8.64 9.1 8.10
3.5 - 11.10  10.09 10.26 9.98 - 10.05
4.0 - 12.50  11.44 11.66 11.32 11.95 11.40
4.5 - - 12.8 - - - -
5.0 - - - - - 15.35 -
6.0 - - - - - 18.2


The non slip aluminium sheet is a common aluminum checker sheet we seen in daily life, the patterns have one bar, two bars, three bars and five bars, which anti-slip effect is very good. Common nonslip aluminum plates are 1060, 3003 and 5052 aluminum alloy. Common specifications are 4mm and 5mm.

Production process

Anti slip aluminium plate production process

What are the advantages of non slip aluminum plate compared with ordinary aluminum plate?

1, non-slip
The anti-slip function is the main essential difference between the aluminum tread plate and the aluminum plate. It is often found that the anti-slip aluminum tread plate in the bus compartment and the maximum effect is the anti-slip;
2, the scope of application is wider
The anti-slip pattern on the surface of aluminum checker sheet not only make the aluminum plate look better, in fact, in addition to this beautification effect, compared with ordinary aluminum plate, its anti-corrosion ability is stronger, hardness is greater, elasticity is better, so more anti-slip aluminum sheet is used in the industry field;
3. There are quite a lot of places where the non-slip aluminum sheet is used in the aerospace industry. The general material is aluminum-magnesium alloy plate, which has good elasticity, high hardness, strong pressure resistance, anti-corrosion, and the surface has a pattern to prevent slipping and has a beautiful appearance.


Its five-bard tread texture gives excellent anti-skid properties, and it is often used in industrial settings for stairways, catwalks, ramps, and walkways where wet conditions may otherwise pose a risk of sliding or falling. These non-slip properties also make it a common solution for ambulance floors and for the footplates of firetrucks, as well as domestic truck beds and trailer floors.

Anti slip aluminium plates can also be used for wall panels, counter tops, tiling for other surfaces, and various architectural uses. Since it is easy to machine along with being robust and attractive, diamond plate tool boxes are another popular application. It is frequently employed to finish edges and corners of items made of other materials, where an extra element of wear-resistance is required. When fitting diamond plate in sheets or angles, care should be taken to select the right materials for fixing. Zinc-plated screws can be used, but aluminum rivets or other fixings may contribute to corrosion due to the differing electrolytic properties of the metals. If in doubt, seek advice and be sure to match materials appropriately to avoid long-term problems.

 Anti slip aluminium plate Applications

Packaging & Delivery

Packing: export standard, covering with brown paper and plastic film then packed with wooden case/palletPacking: export standard, covering with brown paper and plastic film then packed with wooden case/pallet such 2-3 tonnes in 1 wooden pallet. Such 18-22 tonnes in 1x20' container.

 Anti slip aluminium platee Packaging

As you can see, these different Anti slip aluminium plate' size including customized shape and sizecan create a range of different Anti skid pattern plate in different time frames. Some are for very specific purposes while others cover a wider range of Anti skid pattern plate needs. If you still have questions about the different Anti slip aluminium plate' size or for more information, please contact us.E-mail:
